4 String PV Combiner Box with Surge Protection & 63A Circuit Breaker - Waterproof Solar Panel Combiner Box for Home & RV Solar Systems (15A Fuse Included) - Perfect for Off-Grid & Residential Solar Power Installations
Free shipping on all orders over $50
7-15 days international
29 people viewing this product right now!
30-day free returns
Secure checkout
31276722
Description

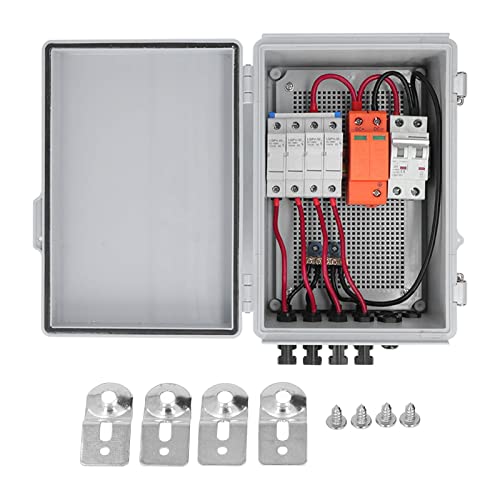

Specification:Item Type: PV Combiner BoxModel: LQX F4 1Material: Polycarbonate, ABS, stainless steel. Input: 4 StringsOutput: 1 StringMaximum Voltage: 500VEvery Input Maximum Short Circuit Current Isc: 15A, replaceable. Maximum Current Input: 63AProtection Grade: IP66Impact Resistance: IK10Product Size: Approx. 290 x 190 x 140mm / 11.42 x 7.48 x 5.51in, excluding protruding parts. Cable Inlet: PG09 2.5-16mm², 2.5-6mm²Output Current Sealing : PG21 2.5-16mm², 2.5-6mm²DC Disconnector: LQL7-PV, 63A-2P. Rated Insulation Voltage Ui: 500VRated Current Le: 63ADC Arrester: LD-40Maximum Working Voltage Ucpv: 600VMaximum Discharge Current: 40KADC Fuse Holder: LQPV-32Rated Working Voltage: 1000VFuse: Approx. 10 x 38mm / 0.39 x 1.5in, 15A.How to Use:Directinstallationanduse.Package List:1 x PV Combiner Box1 x User Manual4 x Installation Bracket4 x Installation Screw
Features
Safety work PV arrays input, mainly combined, fast circuit cutting, protection protection, anti -reverse protection, overload protection, etc., built -in 4 pieces of 15A fuse to overload, photovoltaic solar panels and inverters Novice can also use it with confidence.
Outstanding materials Made of IP65 waterproof and flame retardant materials, this is durable. Stainless steel installation buckle, waterproof and rust -proof, internal wiring, safety, simple, easy to use and installed, buckle can your equipment.
Practical use Combination box is an ideal device for outdoor installation and use. It is suitable for photovoltaic arrays, solar panels, RV solar systems, 12V, 24V, 36V, 48VDC photovoltaic solar connection or closing the grid solar power generation system for photovoltaic power grids, which can meet most needs.
Router 63A circuit breaker. It can provide short -circuit fault protection and control the output of the combined box. Green means normal. Once it turns red, remember to replace it in time to ensure safety.
Good protection The PV combination box will reduce the cable length from the panel to the inverter, and optimize the system to make the system more useful and improve work efficiency.
